Processor type
– Intel Core i3 / i5 series
– Intel Celeron Dual Core
– Intel Pentium Dual Core
Total cache-
Up to 6 MB cache depending on processor type
Chipset
Intel H81 Chipset
Feature Specification
– Type up to 1600 MHz, unbuffered non-ECC, dual-channel DDR3 configuration
– Connectors two internally-accessible DDR3 SODIMM sockets
– Capacity 2 GB, 4 GB, and 8 GB
– Minimum Memory 2 GB
– Maximum Memory 16 GB
Table 3. Video
Feature
Specification
Video Controller:
Integrated
- Integrated Intel HD Graphics 4600 – Intel Core i5
- Integrated Intel HD Graphics 4400 – Intel Core i3
- Integrated Intel HD Graphics – Intel Pentium/Celeron Dual Core
Table 4. Audio
Feature Specification
Controller ALC3661-CG (Realtek)
Speaker single 4-ohms, 2 W AVG speakers with 2.5 W Peak
Internal speaker amplifier up to 6 W per channel
Internal microphone support single digital microphone
Volume controls
Volume up/down buttons (Windows 7 only), program menus,
and keyboard media-control keys
Table 5. Communications
Feature Specification
Network adapter Intel 10/100/1000 Mbps Ethernet LAN on system board
Wireless half mini-card
Wi-Fi 7260 agn/ac
Table 6. Cards
Feature Specification
M.2 one
Table 7. Displays
Feature Specification
Type 19.5 inch HD+ WLED
Maximum resolution 1600 x 900
Refresh rate 60 Hz
Operating angle 170 (horizontal) / 160 (vertical)
Pixel pitch 0.27 mm
Dimensions:
Height 236.30 mm (9.30 inches)
Width 433.90 mm (17.08 inches)
Diagonal 495.30 mm (19.50 inches)
Table 8. Drives
Feature Specification
Hard drive one 2.5-inch SATA drive
Optical drive (optional) one DVD-ROM, DVD+/- RW
Table 9. Ports and Connectors
Feature
Specification
Audio: one universal audio jack/Line-out port
Network adapter one RJ45 connector
USB 2.0 four connectors in the back panel
USB 3.0 two connectors on the side panel
Media card reader one 4-in-1 slot
Table 10. Power
Feature Specification
Type 180 W
Frequency 50 Hz – 60 Hz
Voltage 100 VAC – 240 VAC
Rated output voltage 19.50 VDC
Input current 2.9 A Maximum
Output current +12.0 V output (+12VA – 10A & +12VB – 14.5A)
Table 11. Camera (optional)
Feature Specification
Image resolution 0.92 megapixel
Video resolution 720p @ 30 FPS HD
Diagonal viewing angle 74 degrees
Table 12. Stand
Feature Specification
Tilt -5 degrees to 30 degrees
Table 13. Physical Dimensions
Feature Without Stand With Stand
Width
489.92 mm (19.29 inches)
489.92 mm (19.29 inches)
Height
328.84 mm (12.95 inches)
What’s in the box-

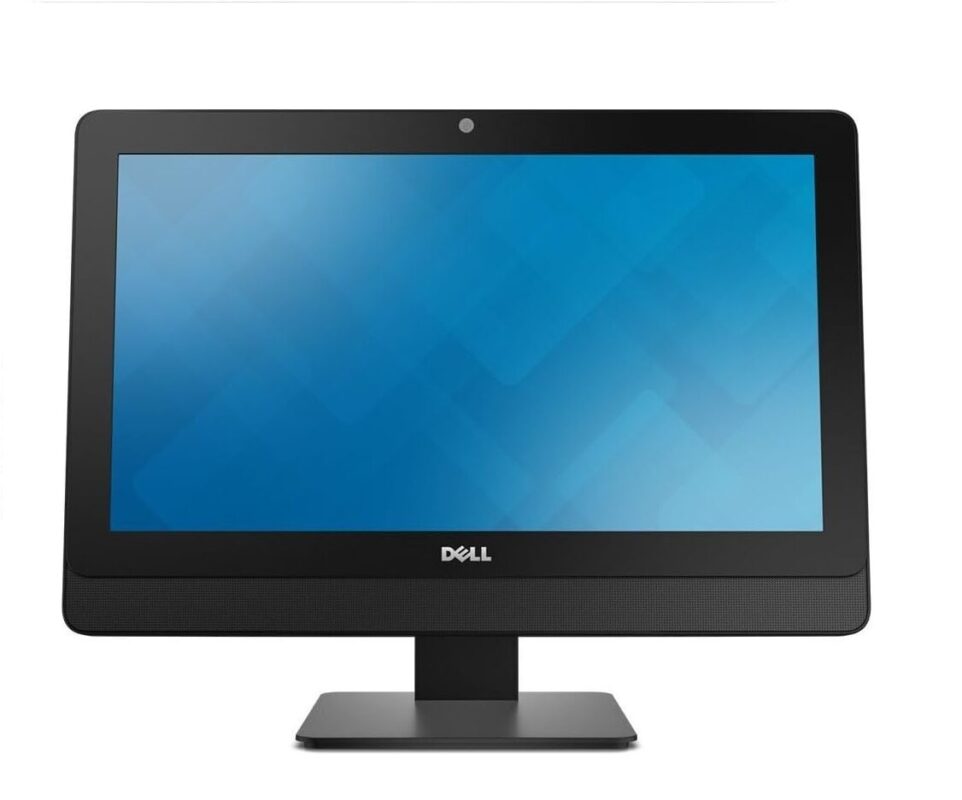

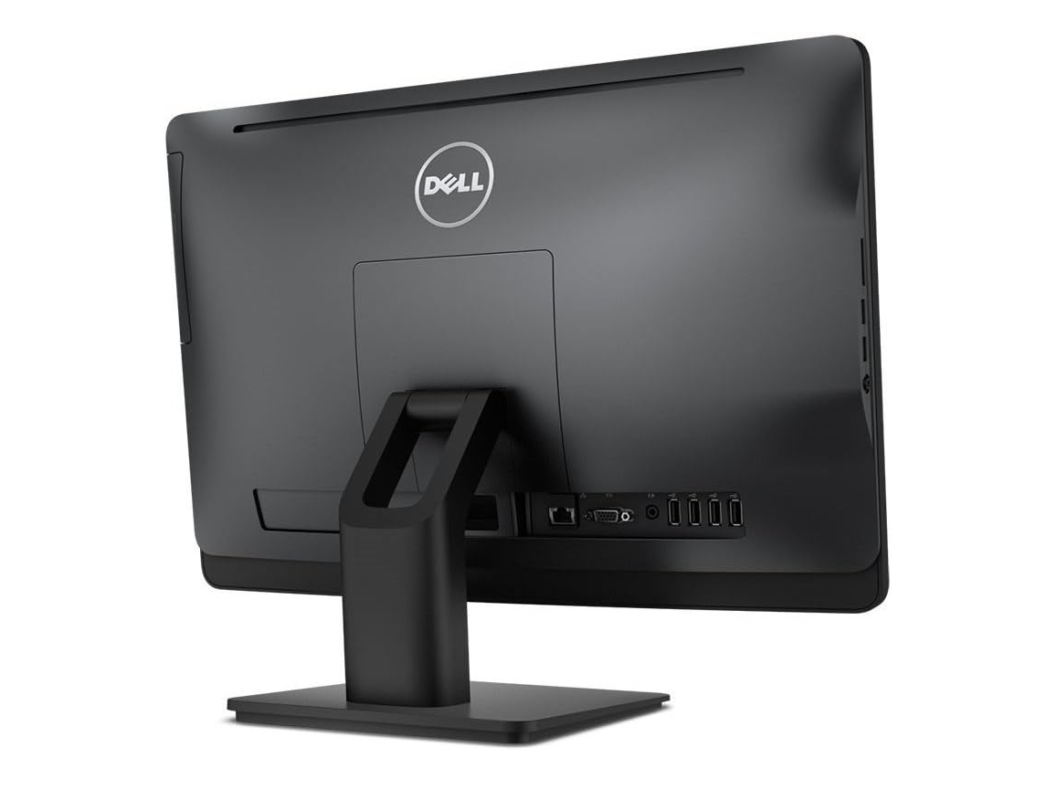

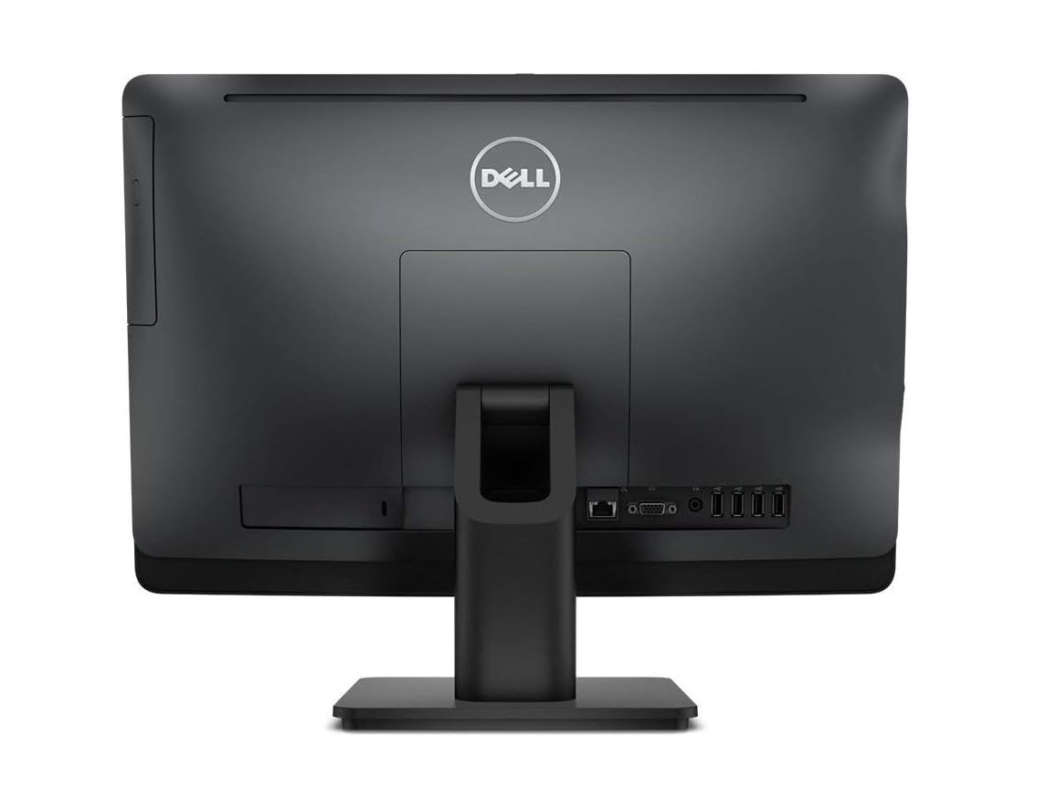

- 1 x Refurbished Dell OptiPlex 3030 All-in-One Intel i5 4th Gen
- 1 x Wireless Keyboard and Mouse Combo
- 1 x Power Cable
